Prefab Mains Toilet & Shower Block - Anthracite

Product Code: WC-Shower-R2-Anthracite
$5,162.00 inc vat
$4,301.67 ex vat
$5,162.00
In Stock | See ordering information tab

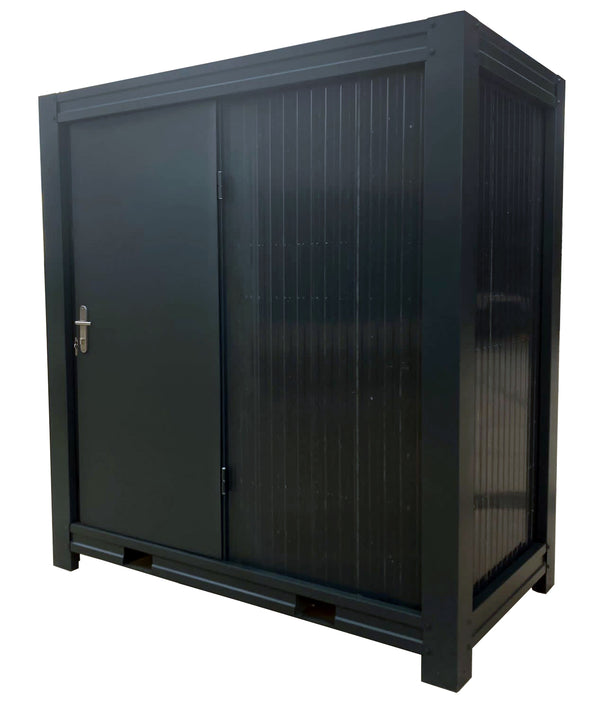

Prefab Mains Toilet & Shower Block - 120cm x 220cm - Anthracite

● Full flushing ceramic close coupled cistern and WC
● Ceramic wash basin with pedestal and chrome mixer tap
● Toilet roll holder

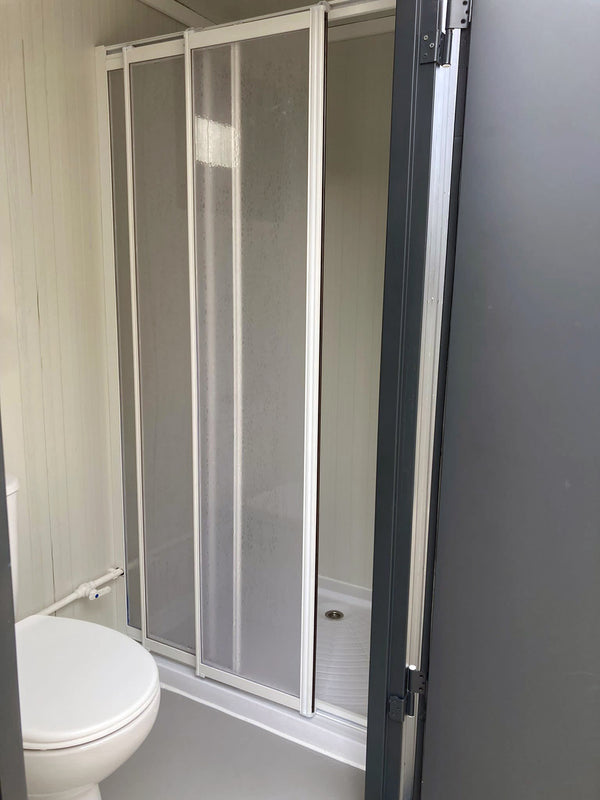

● Shower tray
● Triple perspex sliding shower door
● Mira 9.0kw UK specification instant electric shower
● Shower Head riser, shower hose and chromium shower head
● Internal ceiling mounted sensor light
● Mirror
● Frosted bottom hinged window on back wall
● Single door with external key lock & internal turn-key opening
● PVC vinyl flooring with floor drain
● Corner posts (no jacklegs needed)
● Insulated 50mm walls and 70mm ceiling
● 100mm WC soil pipe external bottom back
● 50mm sink waste pipe external bottom back
● Mains electricity connection external top back
● Cold water inlet @ 15mm external bottom back
● Hot water inlet @ 15mm for basin (if required) external bottom back
● Step height at door entry 29cm
● Internal Width (m) - 2.1
● Internal Depth (m) - 1.1
● External Width (m) - 2.2
● External Depth (m) - 1.2
● External Height (m) - 2.4
● Forklift pockets for transportation
● Weight 520kg

The unit is wired with breaker supplies for the lighting and shower only. It can be
retro fitted on site with an internal space heater if required.

A 40 amp power connection is required to service the shower and lighting via the IP
rated external junction box at top back.

Installation

We recommend a completely level concrete base for each unit.
A concrete pad of at least 15cm should be laid on an impacted hard core base with reinforcing mesh. An adequate stepping area should be allowed in front of each unit
which has a footprint of 2.2 x 1.2m.

Adequate space should also be allowed at the outside rear for access to water
supply, waste and electrical connections.

We recommend a fully qualified plumber and electrician should make the external
water supply, waste and electrical connections.

A Safety Information Sheet, Shower Operation Instructions and Electrical Installation Certificate are supplied with each unit.

Call our Prefab team directly on 01442 910383 or email prefab@jbequipment.co.uk to discuss this toilet block.

Delivery

We can deliver to most UK Mainland postcodes.

Typical delivery charges range from £150 to £595 + VAT where the delivery site is equipped with forklift facilities.

For expedited delivery, more remote areas or delivery to addresses without forklift facilities, additional charges may apply.

It is usually very cost effective to ship multiple units to the same delivery address.

Please email us at prefab@jbequipment.co.uk or call us on 01442 910383 with your full delivery details for an accurate quotation.

You can collect from us Free of Charge and collections on Saturday can often be accommodated with prior arrangement.

Prefab Mains Toilet & Shower Block - 120cm x 220cm - Anthracite

● Full flushing ceramic close coupled cistern and WC
● Ceramic wash basin with pedestal and chrome mixer tap
● Toilet roll holder
● Shower tray
● Triple perspex sliding shower door
● Mira 9.0kw UK specification instant electric shower
● Shower Head riser, shower hose and chromium shower head
● Internal ceiling mounted sensor light
● Mirror
● Frosted bottom hinged window on back wall
● Single door with external key lock & internal turn-key opening
● PVC vinyl flooring with floor drain
● Corner posts (no jacklegs needed)
● Insulated 50mm walls and 70mm ceiling
● 100mm WC soil pipe external bottom back
● 50mm sink waste pipe external bottom back
● Mains electricity connection external top back
● Cold water inlet @ 15mm external bottom back
● Hot water inlet @ 15mm for basin (if required) external bottom back
● Step height at door entry 29cm
● Internal Width (m) - 2.1
● Internal Depth (m) - 1.1
● External Width (m) - 2.2
● External Depth (m) - 1.2
● External Height (m) - 2.4
● Forklift pockets for transportation
● Weight 520kg

The unit is wired with breaker supplies for the lighting and shower only. It can be
retro fitted on site with an internal space heater if required.

A 40 amp power connection is required to service the shower and lighting via the IP
rated external junction box at top back.

Installation

We recommend a completely level concrete base for each unit.
A concrete pad of at least 15cm should be laid on an impacted hard core base with reinforcing mesh. An adequate stepping area should be allowed in front of each unit
which has a footprint of 2.2 x 1.2m.

Adequate space should also be allowed at the outside rear for access to water
supply, waste and electrical connections.

We recommend a fully qualified plumber and electrician should make the external
water supply, waste and electrical connections.

A Safety Information Sheet, Shower Operation Instructions and Electrical Installation Certificate are supplied with each unit.

Call our Prefab team directly on 01442 910383 or email prefab@jbequipment.co.uk to discuss this toilet block.

Delivery

We can deliver to most UK Mainland postcodes.

Typical delivery charges range from £150 to £595 + VAT where the delivery site is equipped with forklift facilities.

For expedited delivery, more remote areas or delivery to addresses without forklift facilities, additional charges may apply.

It is usually very cost effective to ship multiple units to the same delivery address.

Please email us at prefab@jbequipment.co.uk or call us on 01442 910383 with your full delivery details for an accurate quotation.

You can collect from us Free of Charge and collections on Saturday can often be accommodated with prior arrangement.
