JB Mechanical Mini Digger Grapple Grab -1 to 2 tonne

Product Code: MG1
£564.00
In Stock | See ordering information tab

1-2 Tonne Mini Digger Mechanical Excavator Grapple

Other Sizes Click Here

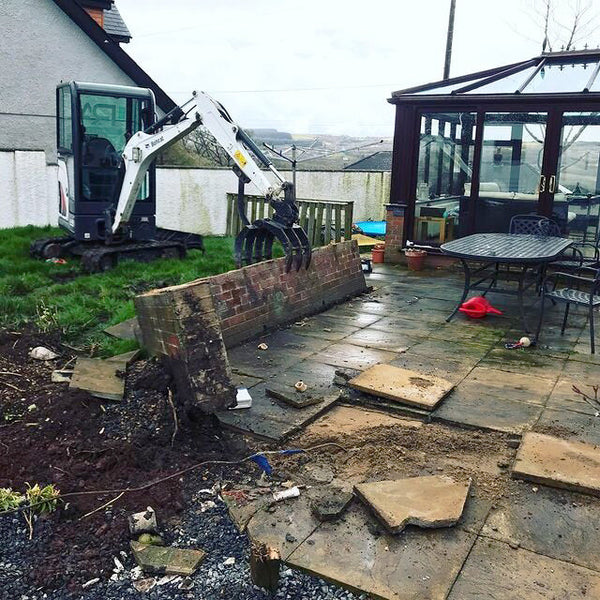

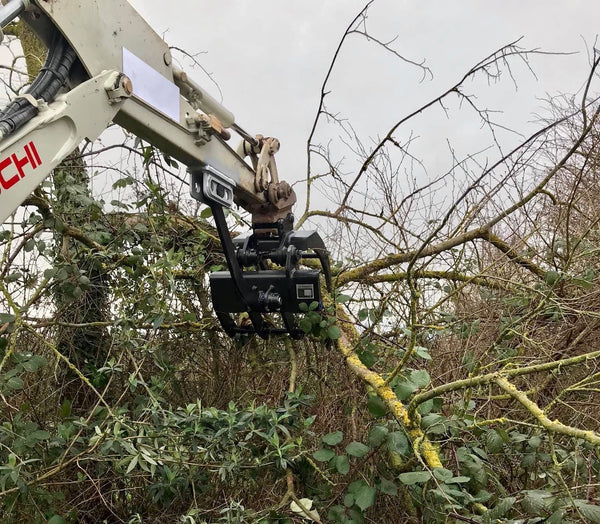

The mechanical excavator grapple is an economical solution for light weight and general purpose applications. Ideal for farms, small holdings and agricultural contractors for clearing wood, rocks and brash. The JB mechanical excavator grab is also well suited for skip waste, land clearance and general forestry applications.

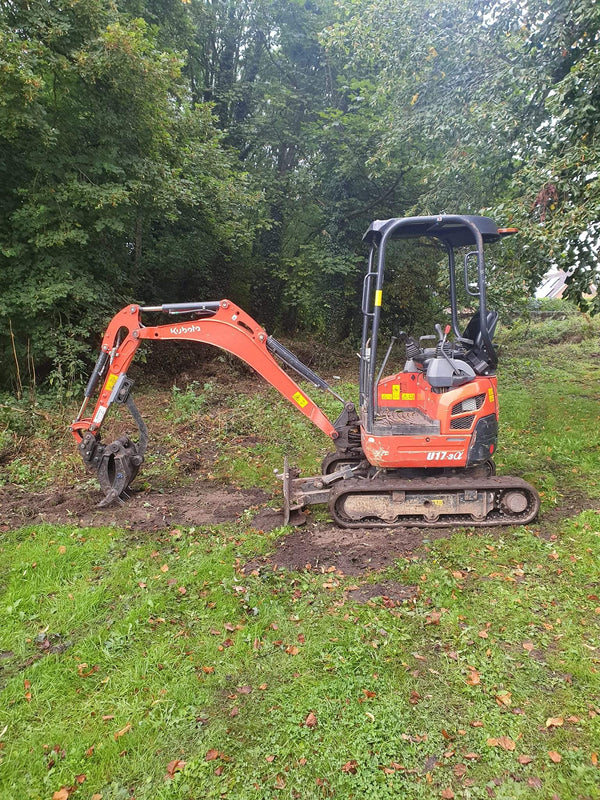

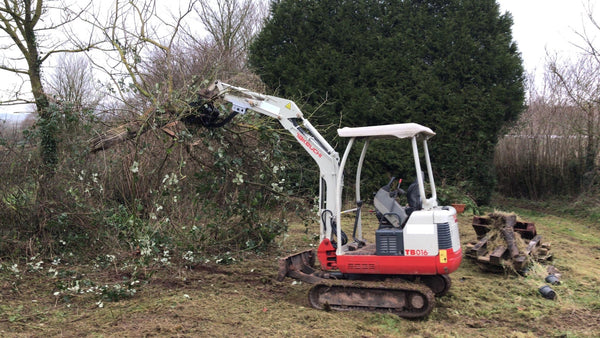

The JB Equipment Manual Excavator grab is a popular budget choice for sorting and handling applications. Using the tried and tested 7 tine set up the MG1 is best suited to excavators from 1 tonne to 2 tonne such as a Kubota U17 or Takeuchi TB216.

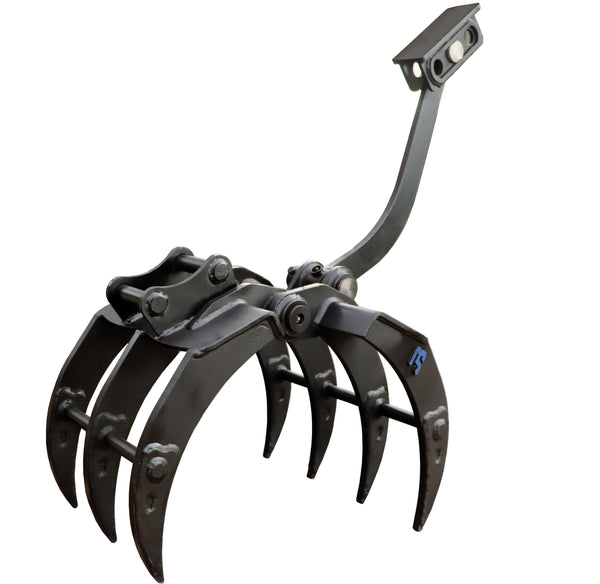

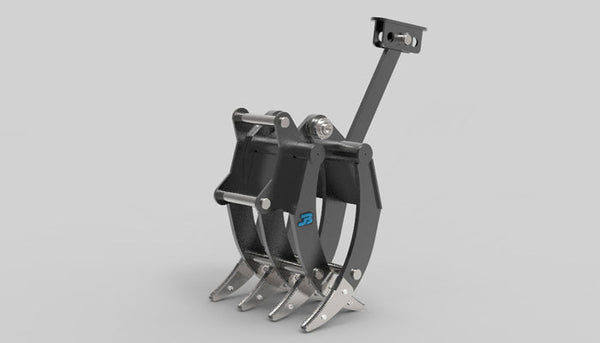

Supplied as 3 part kit; grab (with 2 pin linkage to suit excavator), weld on dipper pad and link arm.

The grab utilises the crowd function of the bucket ram to operate the opening and closing of the grab without the need for self contained hydraulics. The link bar of the grab is connected to the dipper arm via a welded plate which fixes the 4 tine jaw in place.

Extra strengthening straps welded to the side of each of the tines increases strength to stop bending when in use. Fully grease-able pivot points and line bore machining give the manual grab an excellent service life.


Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.

Specifications

Models available to suit 1.5 - 20 tonne excavators, with larger models available on request.

This page is for the JB excavator mounted mechanical grapple - model MG1 to suit 1-2 tonne excavators

MG1 Features

  • Typical lead time (can vary): 2-3 days

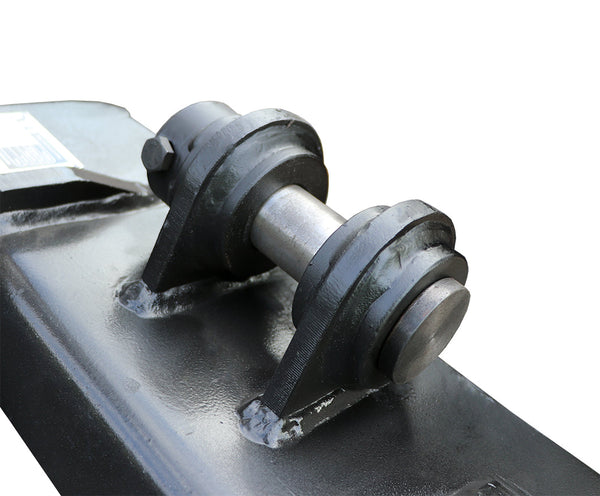

  • Includes 2 pin excavator linkage
  • Re-enforced, pocket welded grapple legs
  • Solid 7 tine design for maximum surface area grip

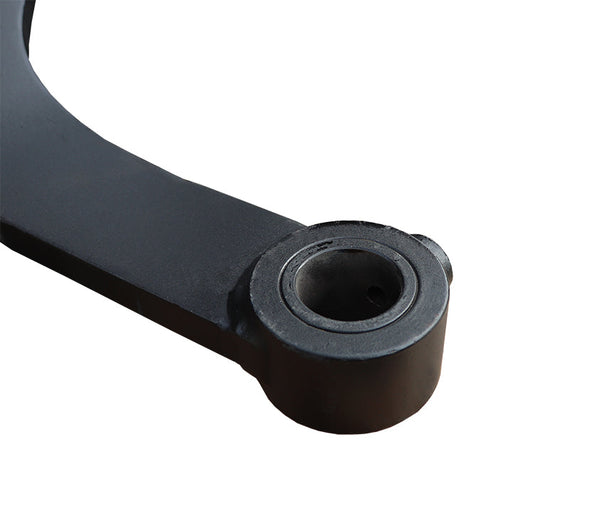

  • Line bored & fully grease-able pivot points

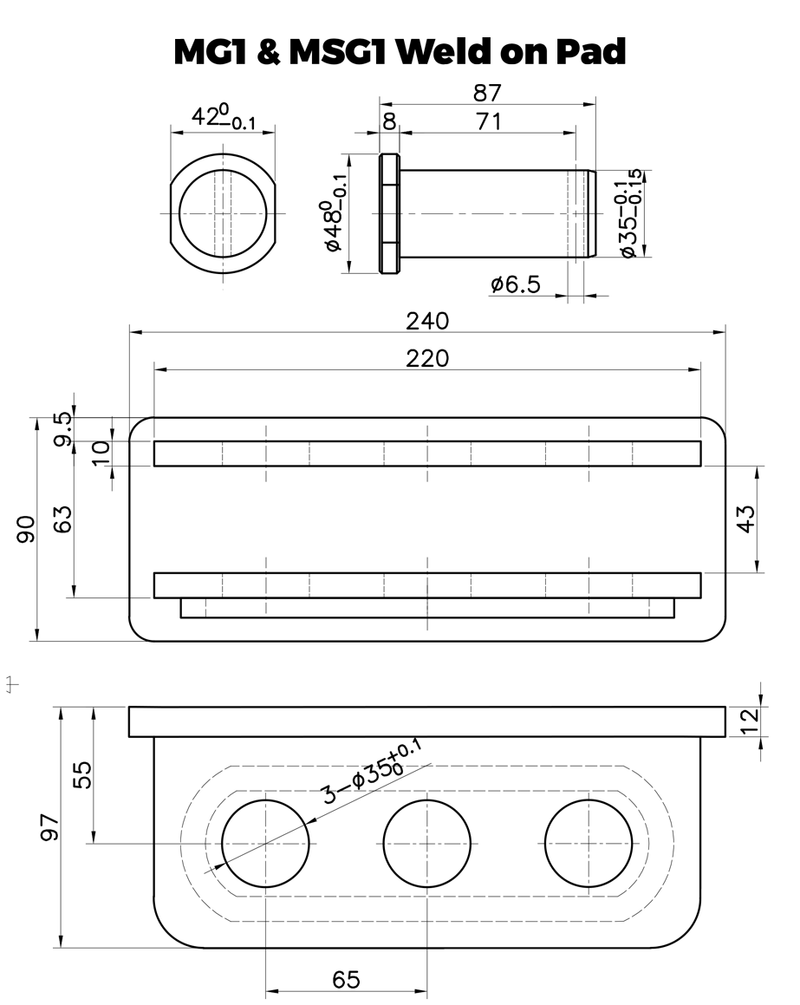

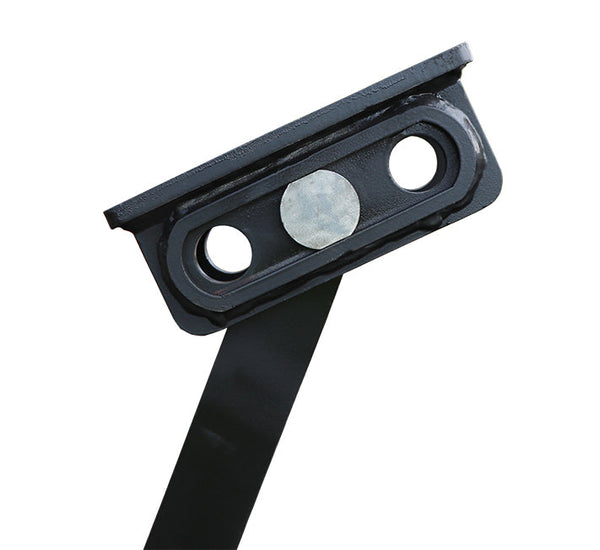

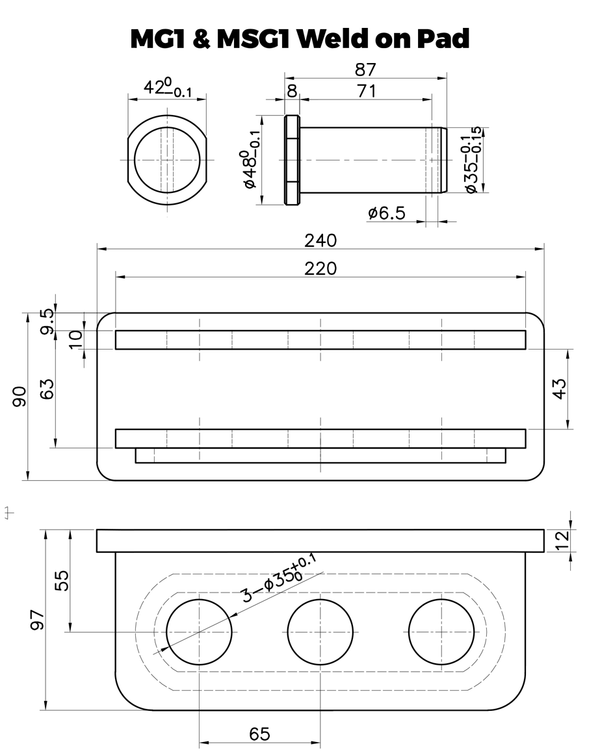

  • Supplied as three piece kit - grapple, connecting bar & 3 position weld on dipper arm plate

    1-2 Tonne Mini Digger Mechanical Excavator Grapple

    Other Sizes Click Here

    The mechanical excavator grapple is an economical solution for light weight and general purpose applications. Ideal for farms, small holdings and agricultural contractors for clearing wood, rocks and brash. The JB mechanical excavator grab is also well suited for skip waste, land clearance and general forestry applications.

    The JB Equipment Manual Excavator grab is a popular budget choice for sorting and handling applications. Using the tried and tested 7 tine set up the MG1 is best suited to excavators from 1 tonne to 2 tonne such as a Kubota U17 or Takeuchi TB216.

    Supplied as 3 part kit; grab (with 2 pin linkage to suit excavator), weld on dipper pad and link arm.

    The grab utilises the crowd function of the bucket ram to operate the opening and closing of the grab without the need for self contained hydraulics. The link bar of the grab is connected to the dipper arm via a welded plate which fixes the 4 tine jaw in place.

    Extra strengthening straps welded to the side of each of the tines increases strength to stop bending when in use. Fully grease-able pivot points and line bore machining give the manual grab an excellent service life.


    Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.

    ×

    Models available to suit 1.5 - 20 tonne excavators, with larger models available on request.

    This page is for the JB excavator mounted mechanical grapple - model MG1 to suit 1-2 tonne excavators

    ×

    • Typical lead time (can vary): 2-3 days
    • Includes 2 pin excavator linkage
    • Re-enforced, pocket welded grapple legs
    • Solid 7 tine design for maximum surface area grip
    • Line bored & fully grease-able pivot points
    • Supplied as three piece kit - grapple, connecting bar & 3 position weld on dipper arm plate
