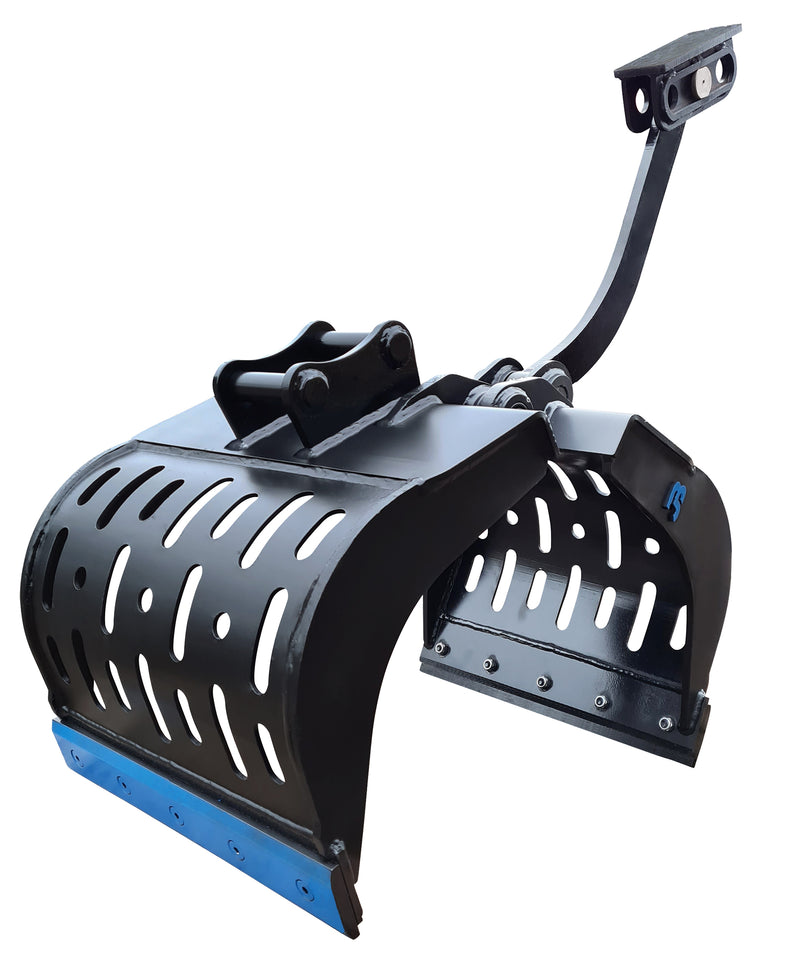

MSG6 Mechanical Excavator Selector Grab - 6 to 10 tonne

Product Code: MSG6
£1,674.00 inc vat
£1,395.00 ex vat
£1,674.00
In Stock | See ordering information tab

6-10 Tonne Mechanical Excavator Selector Grab

Other Sizes Click Here

The mechanical excavator selector grab is an economical solution for a range of applications. The JB mechanical excavator selector grab is well suited for skip waste, land clearance and demolition applications.

This grab is a popular budget choice for sorting and handling applications. The MSG6 is best suited to excavators from 6 tonne to 8 tonne such as a JCB8080 or Kubota KX080.

The crowd function of the bucket ram is used to operate the opening and closing of the grab so no internal hydraulics are required. Unlike the smaller models in this range the MSG6 uses a heavy duty tube design to connect the rear jaw of the grab to welded plate on the dipper arm.

Supplied as 3 part kit; grab (with 2 pin linkage to suit excavator), weld on dipper pad and link arm.

Fully bushed and greaseable pivot points and line bore machining give the mechanical selector grab an excellent service life.

Specifications

Models available to suit 1.5 - 20 tonne excavators, with larger models available on request.

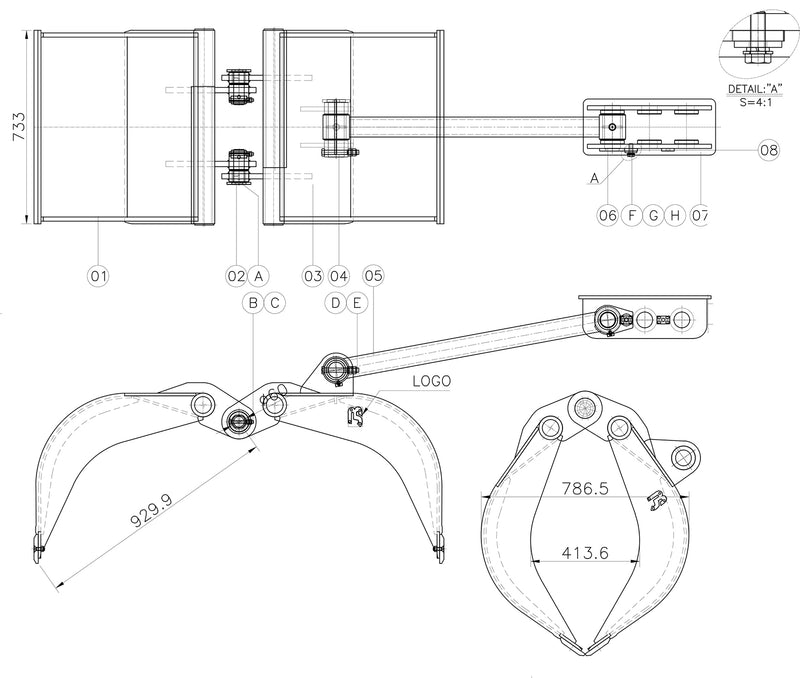

This page is for the JB excavator mounted mechanical grapple - model MSG6 to suit 6-10 tonne excavators

MSG6 Features

  • Typical lead time (can vary): 2-3 days
  • Includes 2 pin excavator linkage
  • Re-enforced, pocket welded grapple legs
  • Bolt on edges
  • Shell type design
  • Line bored & fully grease-able pivot points
  • Supplied as three piece kit - grapple, connecting bar & 3 position weld on dipper arm plate

    6-10 Tonne Mechanical Excavator Selector Grab

    Other Sizes Click Here

    The mechanical excavator selector grab is an economical solution for a range of applications. The JB mechanical excavator selector grab is well suited for skip waste, land clearance and demolition applications.

    This grab is a popular budget choice for sorting and handling applications. The MSG6 is best suited to excavators from 6 tonne to 8 tonne such as a JCB8080 or Kubota KX080.

    The crowd function of the bucket ram is used to operate the opening and closing of the grab so no internal hydraulics are required. Unlike the smaller models in this range the MSG6 uses a heavy duty tube design to connect the rear jaw of the grab to welded plate on the dipper arm.

    Supplied as 3 part kit; grab (with 2 pin linkage to suit excavator), weld on dipper pad and link arm.

    Fully bushed and greaseable pivot points and line bore machining give the mechanical selector grab an excellent service life.

    ×

    Models available to suit 1.5 - 20 tonne excavators, with larger models available on request.

    This page is for the JB excavator mounted mechanical grapple - model MSG6 to suit 6-10 tonne excavators

    ×

    • Typical lead time (can vary): 2-3 days
    • Includes 2 pin excavator linkage
    • Re-enforced, pocket welded grapple legs
    • Bolt on edges
    • Shell type design
    • Line bored & fully grease-able pivot points
    • Supplied as three piece kit - grapple, connecting bar & 3 position weld on dipper arm plate

      More Related Products

      View all
      MG2 Mechanical Excavator Grapple Grab - 2 to 3 tonne
      £822.00 inc vat
      £685.00 ex vat
      MG4 Mechanical Excavator Grapple Grab - 3 to 6 tonne
      £978.00 inc vat
      £815.00 ex vat

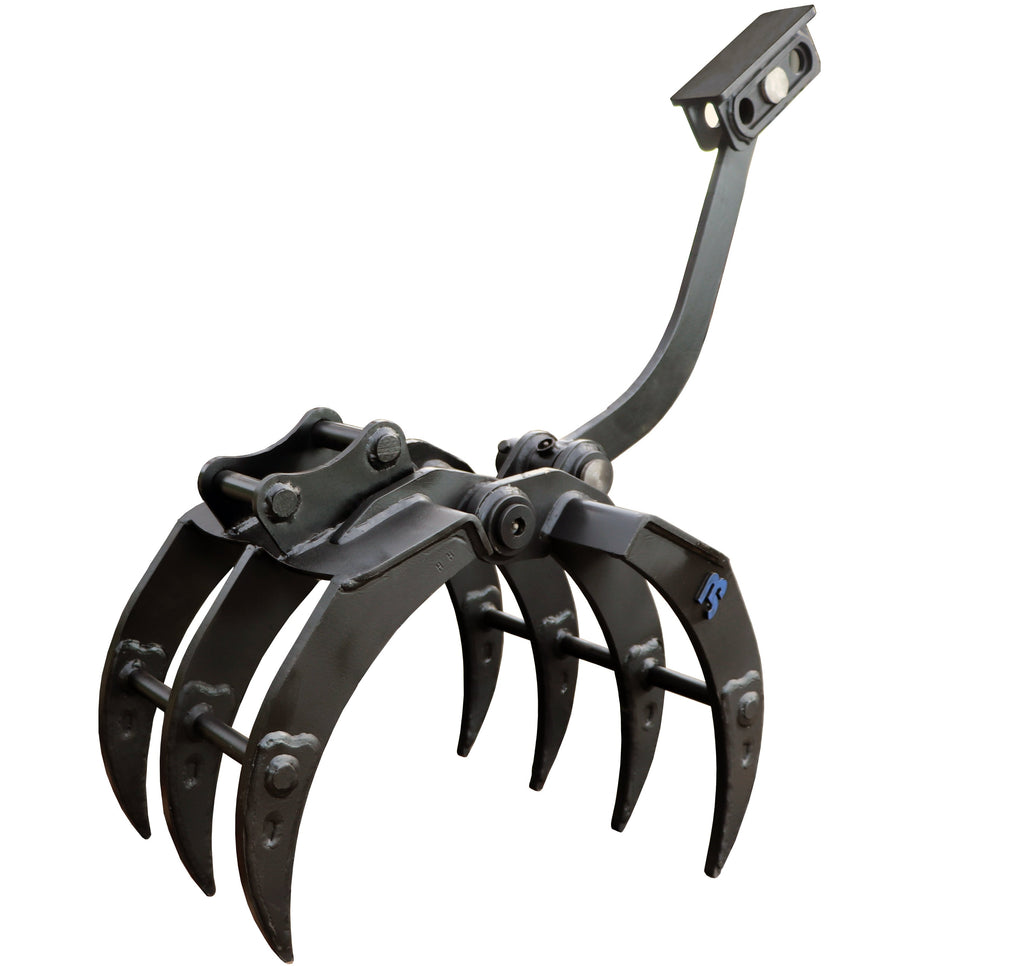

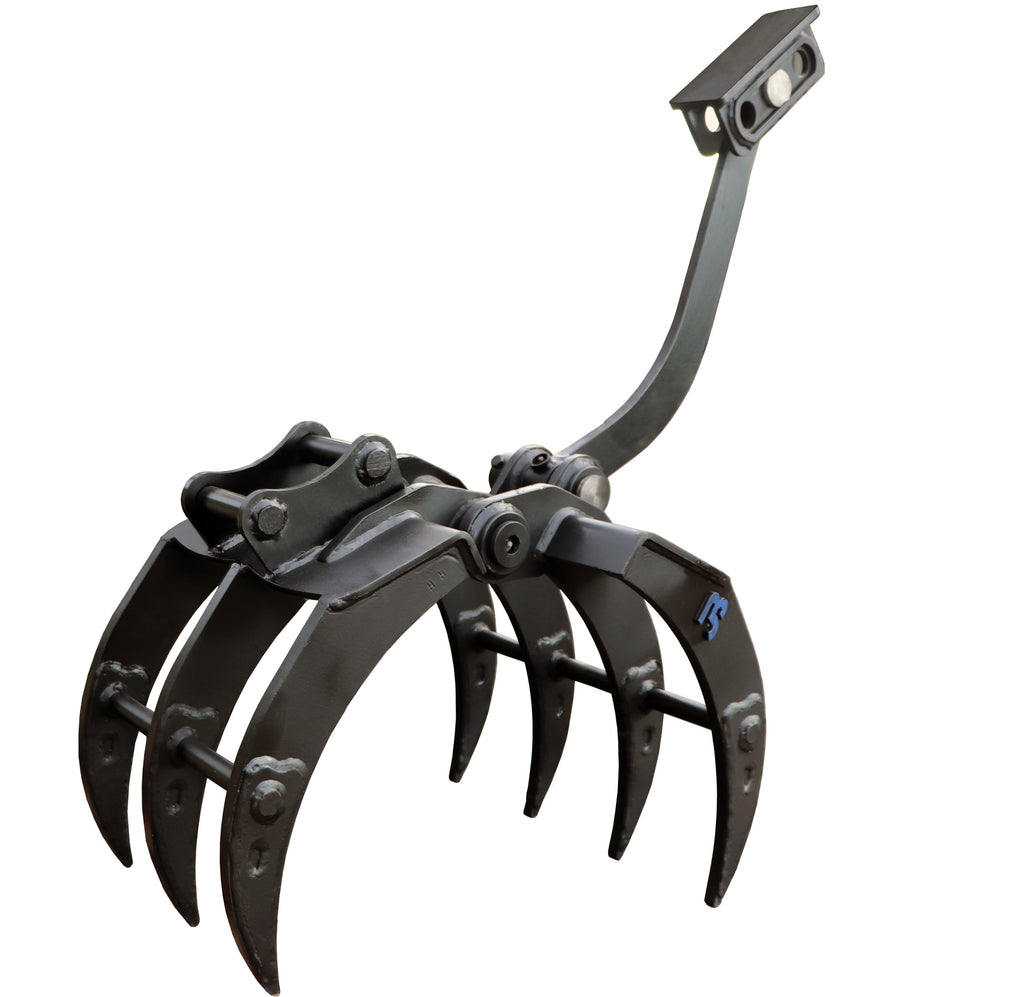

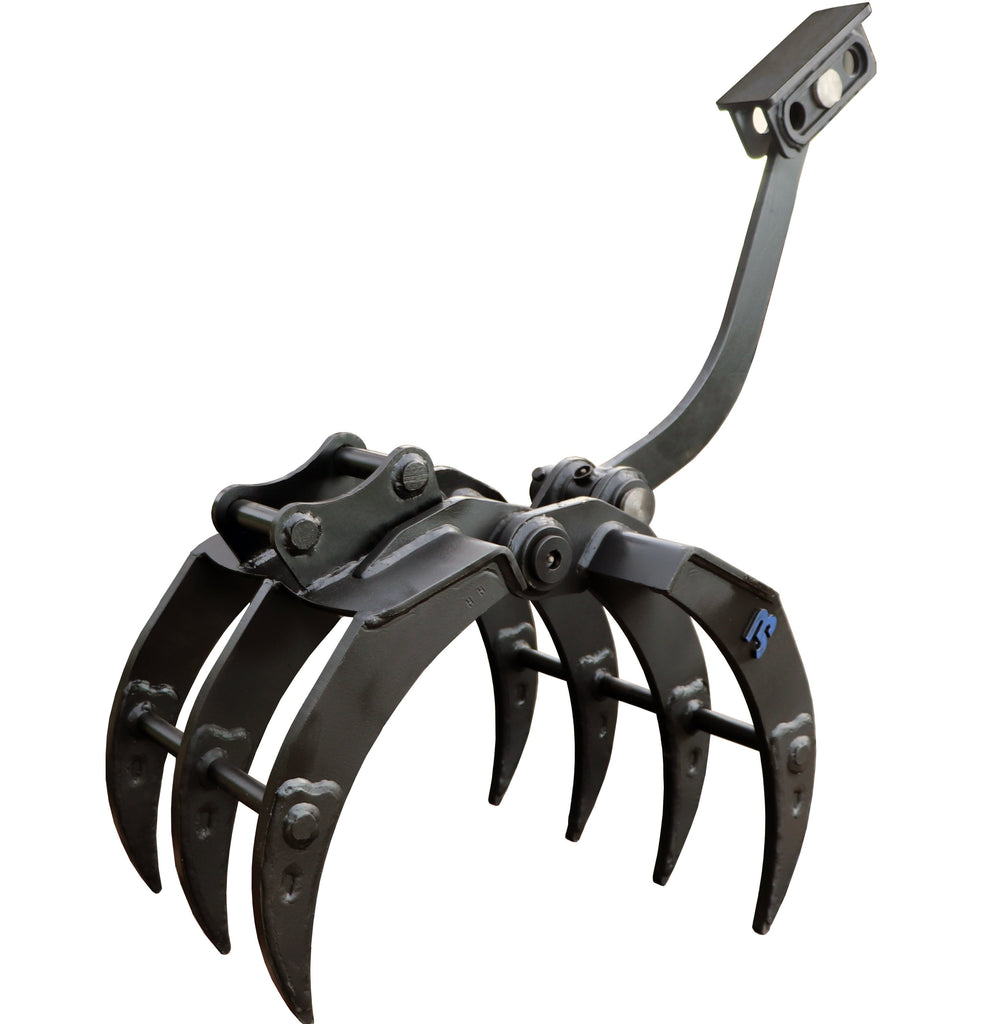

      MG6 Mechanical Excavator Grapple Grab - 6 to 10 tonne
