040 General Purpose Excavator Land Rake Bucket - 3-6 Tonne

Product Code: 040-RAKE
£762.00 inc vat
£635.00 ex vat
£762.00
In Stock | See ordering information tab

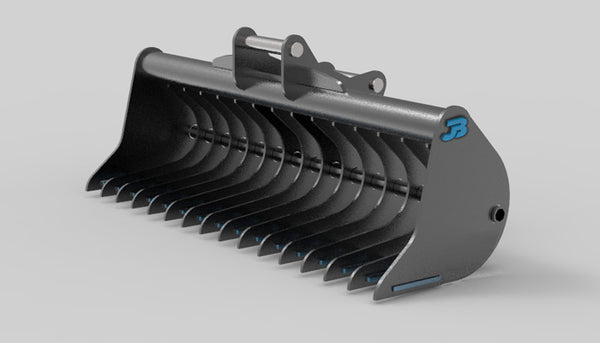

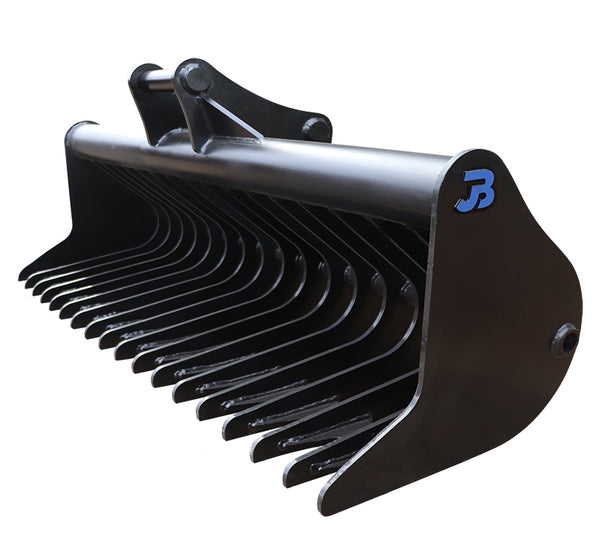

3-6 Tonne Excavator Land Rake Bucket

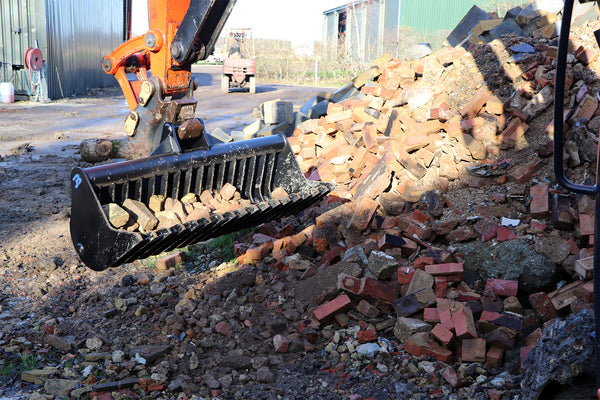

The 040-RAKE Land Rake has been specially designed for use on 3 - 6 tonne excavators such as a Kubota U48 or similar. Its dimensions, weight and capacity make it perfectly suited to this range of excavators. The land rake has many uses such as ground clearance, topsoil raking and sorting. It is widely used by groundwork's contractors, landscapers and farmers.

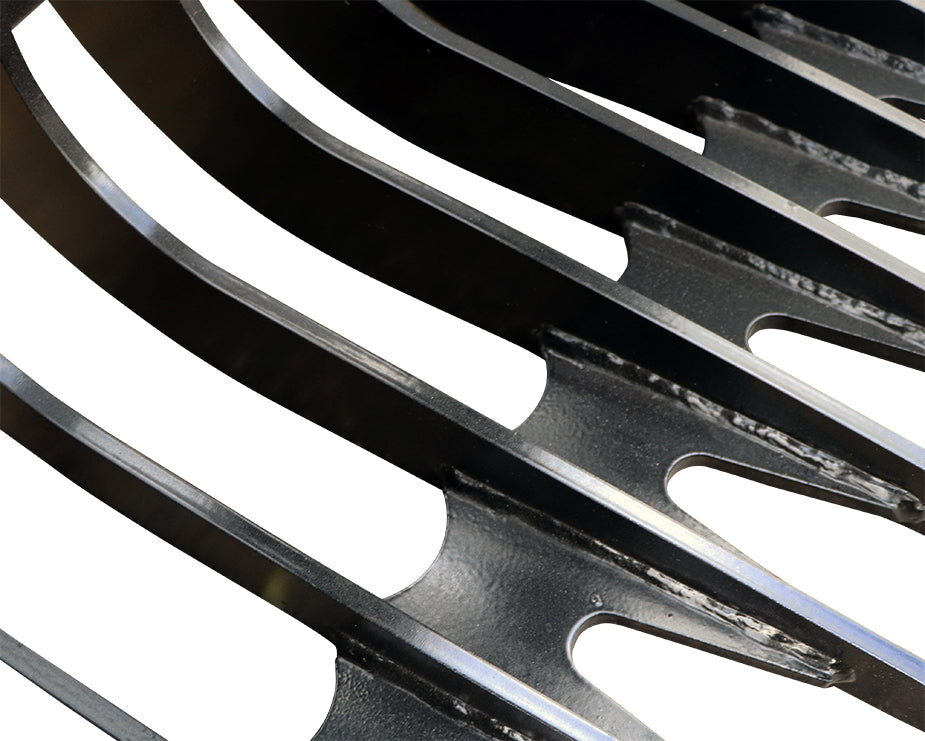

The shape has been designed and tested for optimal performance when handling material. Unlike a standard ditching bucket curve, the side plates have an angular profile to provide maximum efficiency when sorting, picking and carrying. The internal tines are positioned at 3” spacing's (other spacing's available on special order). With 8 mm tine tips that are able to sift the ground it makes it a perfect tool for finishing work as well as general sorting.



Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.

Specifications

You are currently viewing the 040-RAKE model to suit 3-6 tonne excavators



040-Rake Features

  • Typical production lead time (can vary): 2-3 days
  • Manufactured from standard 345 steel. Full Hardox models can be manufactured on request.
  • Includes welded 2 pin excavator linkage

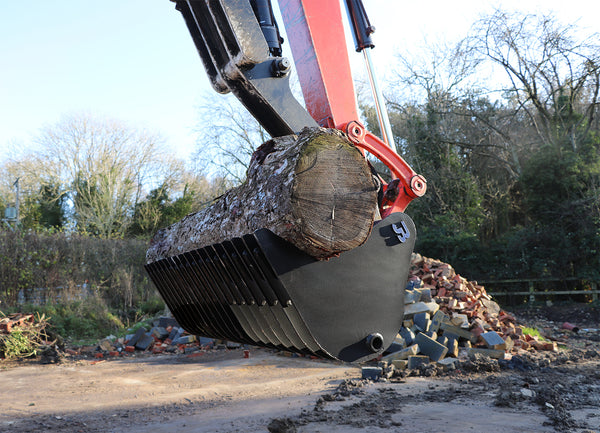

  • Angular, V shaped side profile for carrying long timber
  • 75m / 3" standard spacing's

3-6 Tonne Excavator Land Rake Bucket

The 040-RAKE Land Rake has been specially designed for use on 3 - 6 tonne excavators such as a Kubota U48 or similar. Its dimensions, weight and capacity make it perfectly suited to this range of excavators. The land rake has many uses such as ground clearance, topsoil raking and sorting. It is widely used by groundwork's contractors, landscapers and farmers.

The shape has been designed and tested for optimal performance when handling material. Unlike a standard ditching bucket curve, the side plates have an angular profile to provide maximum efficiency when sorting, picking and carrying. The internal tines are positioned at 3” spacing's (other spacing's available on special order). With 8 mm tine tips that are able to sift the ground it makes it a perfect tool for finishing work as well as general sorting.



Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.

×

You are currently viewing the 040-RAKE model to suit 3-6 tonne excavators



×

  • Typical production lead time (can vary): 2-3 days
  • Manufactured from standard 345 steel. Full Hardox models can be manufactured on request.
  • Includes welded 2 pin excavator linkage
  • Angular, V shaped side profile for carrying long timber
  • 75m / 3" standard spacing's
