BC85 Excavator Forestry Grab - 1-2 Tonne

Product Code: BC85-F
£1,428.00 inc vat
£1,190.00 ex vat
£1,428.00
In Stock | See ordering information tab

1-2 Tonne Bear Claw Excavator Forestry Grab - BC85

The Bear Claw forestry grabs are engineered specifically for the UK and Irish markets, featuring heavy duty HB450 reinforced legs, internal guide bars, high pressure cylinders, line bored pivot areas, bushes and hardened greaseable pins throughout.

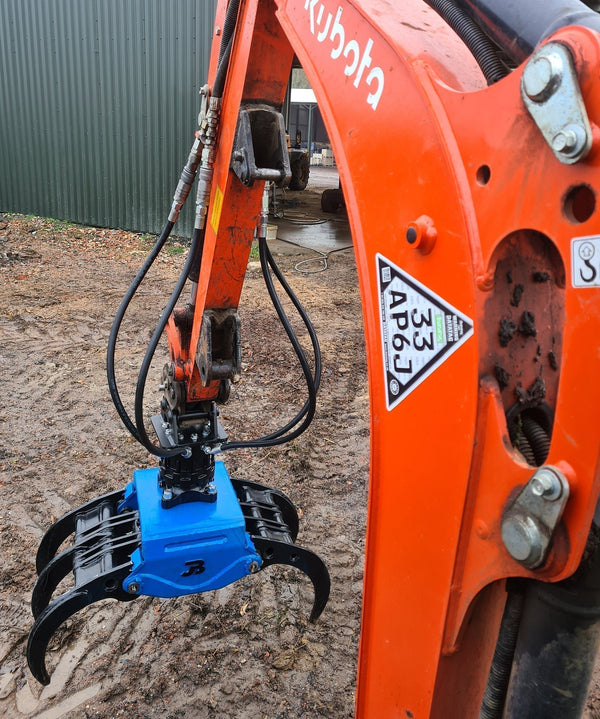

These are supplied in either a non-rotating / fixed configuration which simply operates off the excavators double acting hydraulic hammer circuit, or alternatively with a full 360 degree rigid rotation unit (twin auxiliary services required on the excavator).

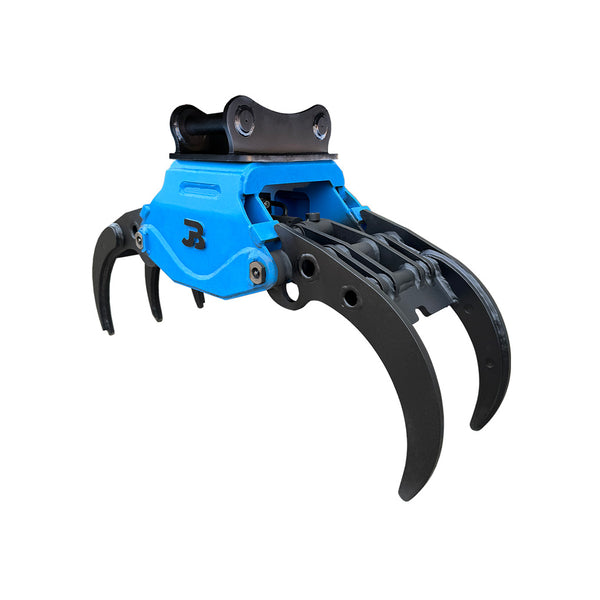

Non-rotating / fixed configurations are supplied with a quick hitch cross link headstock (if pin measurements allow) and enables the grab to be used in either orientation. Should the excavator pin measurements not provide sufficient clearance for a cross link headstock to be manufactured, a standard one way hitch will be provided - this can still easily be turned 90 degrees on a set of only 4 bolts in under 2 minutes. Rotating models are supplied with a standard 2 pin head stock. Please note that hydraulic hoses are not included as standard with this grab.

The Bear Claw excavator forestry grab series are ideal for scrub, brash, general clearance and all other forestry spec applications.

Please note: As standard this attachment is not supplied with hoses. Although we generally advise to have these made once fitted to the machine in order to gauge an accurate length, these can be ordered by visiting our Hydraulic Hoses & Couplers webpage. When ordering hoses to accompany an attachment, our team will ensure all hoses are supplied in the appropriate size and with all necessary fittings to fit the attachment (and couplers if applicable). You will need to determine the hose length and size of couplers that you require.

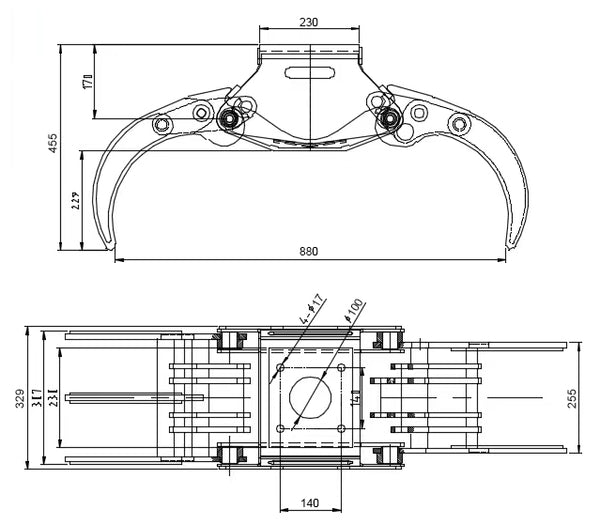

Specifications

Models available to suit 1 - 16 tonne excavators, with larger models available on request.

This page is for the JB Bear Claw Forestry Grab - model BC85 to suit 1-2 tonne excavators



BC85 Features

  • Typical lead time (can vary): 2-3 days
  • Line bored & fully grease-able pivot points
  • Standard 2-way crosslink included (assuming applicable excavator)
  • Rotation configurations available
  • HB450 tines



1-2 Tonne Bear Claw Excavator Forestry Grab - BC85

The Bear Claw forestry grabs are engineered specifically for the UK and Irish markets, featuring heavy duty HB450 reinforced legs, internal guide bars, high pressure cylinders, line bored pivot areas, bushes and hardened greaseable pins throughout.

These are supplied in either a non-rotating / fixed configuration which simply operates off the excavators double acting hydraulic hammer circuit, or alternatively with a full 360 degree rigid rotation unit (twin auxiliary services required on the excavator).

Non-rotating / fixed configurations are supplied with a quick hitch cross link headstock (if pin measurements allow) and enables the grab to be used in either orientation. Should the excavator pin measurements not provide sufficient clearance for a cross link headstock to be manufactured, a standard one way hitch will be provided - this can still easily be turned 90 degrees on a set of only 4 bolts in under 2 minutes. Rotating models are supplied with a standard 2 pin head stock. Please note that hydraulic hoses are not included as standard with this grab.

The Bear Claw excavator forestry grab series are ideal for scrub, brash, general clearance and all other forestry spec applications.

Please note: As standard this attachment is not supplied with hoses. Although we generally advise to have these made once fitted to the machine in order to gauge an accurate length, these can be ordered by visiting our Hydraulic Hoses & Couplers webpage. When ordering hoses to accompany an attachment, our team will ensure all hoses are supplied in the appropriate size and with all necessary fittings to fit the attachment (and couplers if applicable). You will need to determine the hose length and size of couplers that you require.

×

Models available to suit 1 - 16 tonne excavators, with larger models available on request.

This page is for the JB Bear Claw Forestry Grab - model BC85 to suit 1-2 tonne excavators



×

  • Typical lead time (can vary): 2-3 days
  • Line bored & fully grease-able pivot points
  • Standard 2-way crosslink included (assuming applicable excavator)
  • Rotation configurations available
  • HB450 tines
