200 General Purpose Excavator Land Rake Bucket - 16-22 Tonne

Product Code: 200-RAKE
£2,754.00 inc vat
£2,295.00 ex vat
£2,754.00
Out of Stock | See ordering information tab

200 General Purpose Excavator Land Rake Bucket - 16-22 Tonne

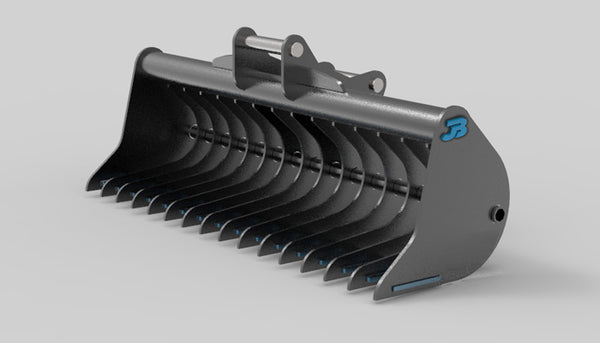

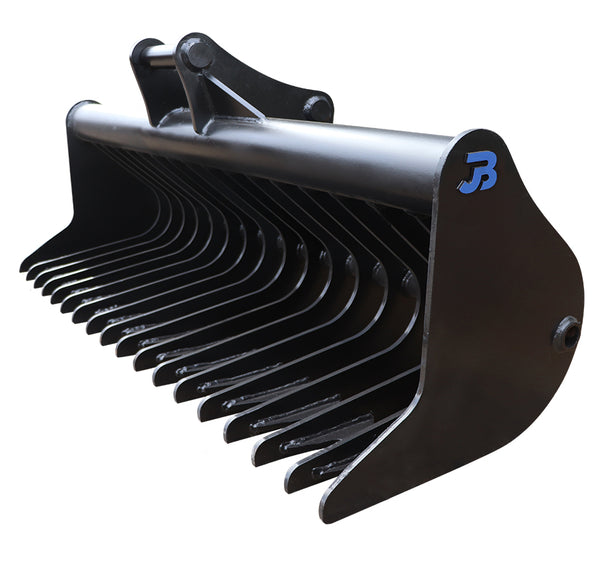

16-22 Tonne Excavator Land Rake Bucket

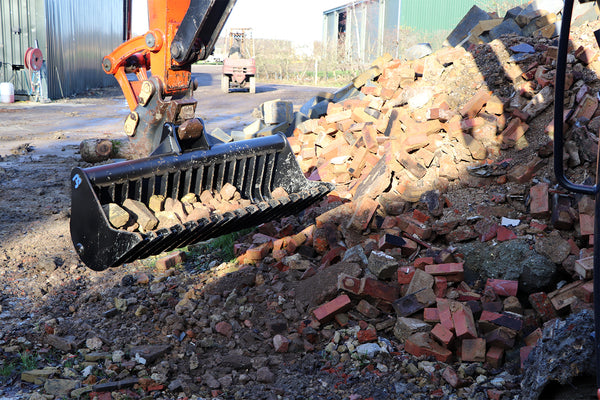

The 16-22 tonne land rake is one of the best selling sizes, suitable for all 20 tonne class excavators such as a Hitachi ZX210 or JCB JS220. Its dimensions, weight and capacity make it perfectly suited to this range of excavators. The land rake has many uses such as ground clearance, topsoil raking and sorting. It is widely used by groundwork's contractors, landscapers and farmers.

These are often a stock item with a 80 mm pin pick up.

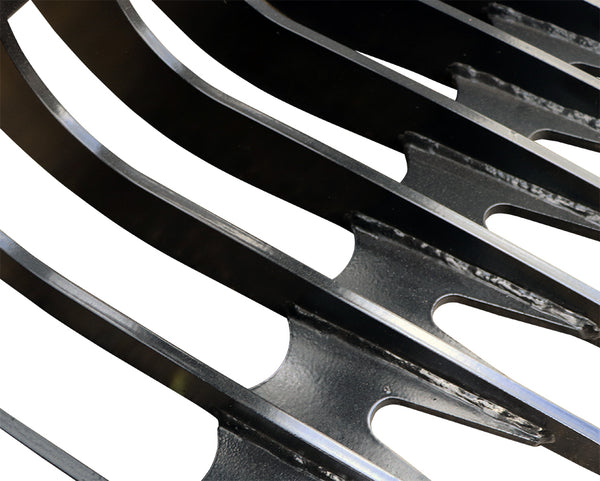

The shape has been designed and tested for optimal performance when handling material. Unlike a standard ditching bucket curve, the side plates have an angular profile to provide maximum efficiency when sorting, picking and carrying. The internal tines are positioned at 3” spacing's (other spacing's available on special order). With 12 mm tine tips that are able to penetrate the ground it makes it a perfect tool for finishing work as well as general sorting.


Click on the interactive image above for specific details and benefits. Alternatively, please find other information below

Specifications

You are currently viewing the 200-RAKE model to suit 16-22 tonne excavators

200-Rake Features

  • Typical production lead time (can vary): 2-3 days
  • Manufactured from standard 345 steel. Full Hardox models can be manufactured on request.
  • Includes welded 2 pin excavator linkage

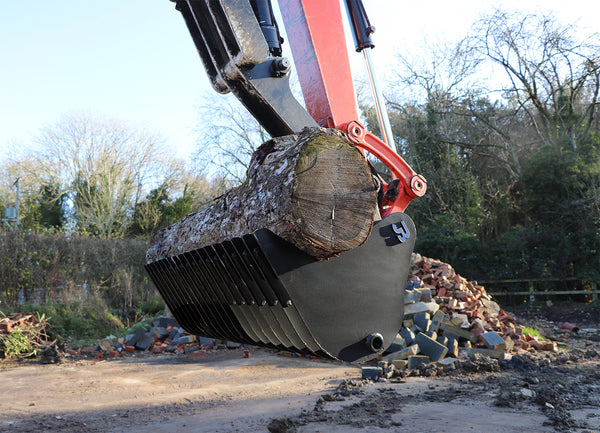

  • Angular, V shaped side profile for carrying long timber
  • 75m / 3" standard spacing's

    16-22 Tonne Excavator Land Rake Bucket

    The 16-22 tonne land rake is one of the best selling sizes, suitable for all 20 tonne class excavators such as a Hitachi ZX210 or JCB JS220. Its dimensions, weight and capacity make it perfectly suited to this range of excavators. The land rake has many uses such as ground clearance, topsoil raking and sorting. It is widely used by groundwork's contractors, landscapers and farmers.

    These are often a stock item with a 80 mm pin pick up.

    The shape has been designed and tested for optimal performance when handling material. Unlike a standard ditching bucket curve, the side plates have an angular profile to provide maximum efficiency when sorting, picking and carrying. The internal tines are positioned at 3” spacing's (other spacing's available on special order). With 12 mm tine tips that are able to penetrate the ground it makes it a perfect tool for finishing work as well as general sorting.


    Click on the interactive image above for specific details and benefits. Alternatively, please find other information below

    ×

    You are currently viewing the 200-RAKE model to suit 16-22 tonne excavators

    ×

    • Typical production lead time (can vary): 2-3 days
    • Manufactured from standard 345 steel. Full Hardox models can be manufactured on request.
    • Includes welded 2 pin excavator linkage
    • Angular, V shaped side profile for carrying long timber
    • 75m / 3" standard spacing's
